EAVision

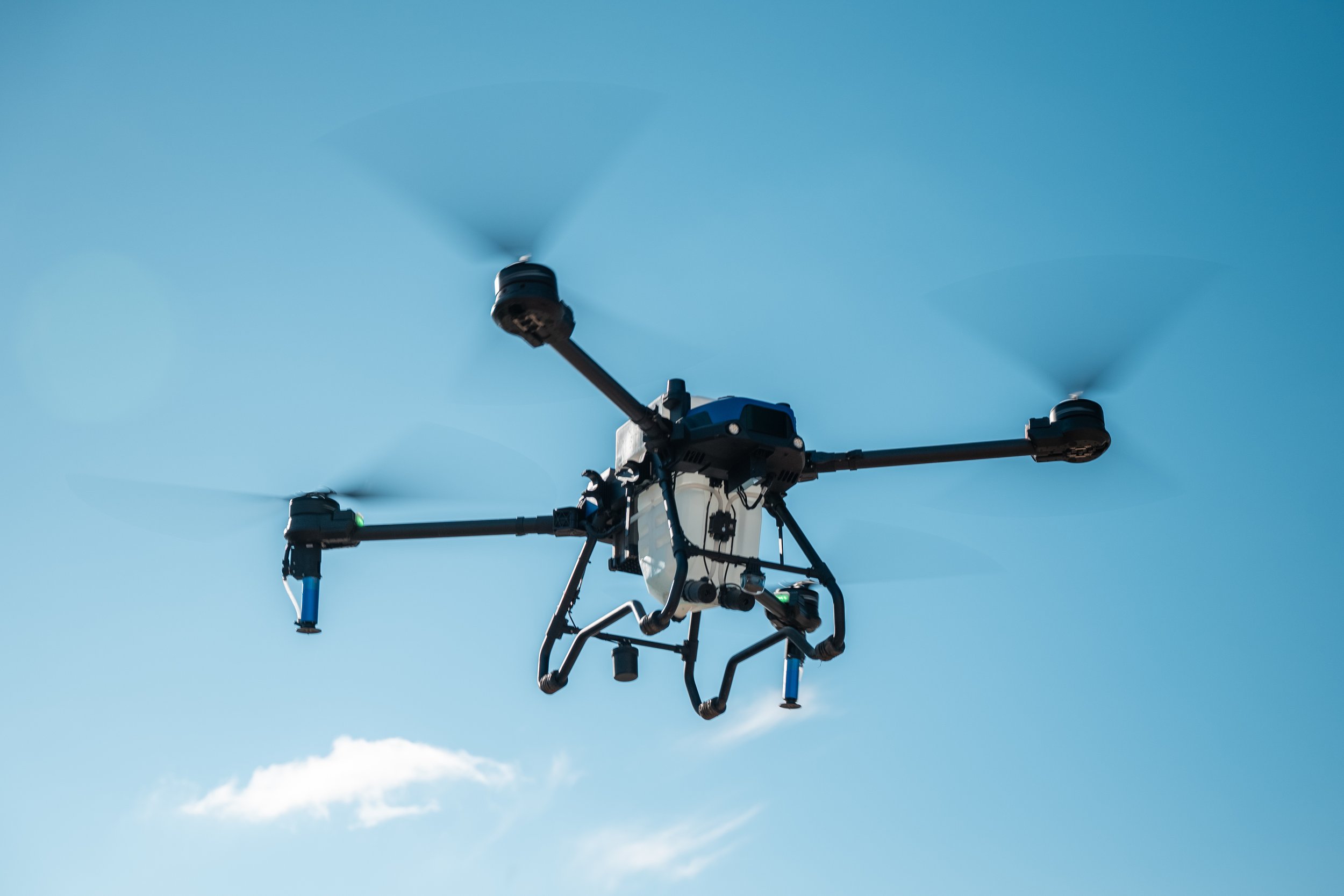

EAVision J100 agricultural drone in flight

EAVision drones are built for complex environments and tough terrain, offering intelligent, autonomous flight capabilities that set them apart in the agricultural drone market. Engineered with advanced obstacle avoidance and adaptive flight control, these drones excel in row crops, orchards, and mountainous regions where traditional equipment struggles. With precision spraying, real-time data collection, and minimal crop disturbance, EAVision drones empower farmers to manage challenging landscapes with unmatched efficiency and accuracy.

See current models below and learn more.

EAVISION J100

request more info

The EAVision J100 is a groundbreaking agricultural drone designed for high-efficiency performance, and the only drone in the market using lidar technology to fly across a variety of terrains. Equipped with state-of-the-art mist nozzles, the J100 enables fine, even atomization with precise control over droplet size and spray patterns across diverse crop types.

Its powerful propulsion system offers robust thrust capacity and superior maneuverability, allowing rapid field coverage even in challenging conditions. With intelligent multi-function capabilities—including advanced lifting, spreading, and surveying functions—the J100 simplifies complex tasks, reduces operational time, and maximizes productivity, adapting to virtually any agricultural application with unmatched accuracy and efficiency.

ADVANCED TECHNOLOGY

  • As the only spray drone with lidar technology,
    obstacle avoidance and terrain following
    outnumbers its competitors.

  • The third-generation CCMS nozzle provides fine, uniform atomization with adjustable droplet sizes (10 microns to 620 microns) at up to 6.3 gallons per minute.

  • The redesigned nozzle adapts easily for tasks like tree and field spraying.

PRODUCT SPECIFICATIONS

    • The CTB shell and blade-style battery withstands high ambient temperatures (up to 104°F) and can charge in under 9 minutes using a 9000W heat-dissipating charger, compatible with generator or mains power.

    • The batteries are designed for high efficacy with separated positive and negative terminals.

    • Batteries are modular, meaning they can be repaired.

    • Increasing longevity an reducing operational costs.

    • The 110-pound spreader tank, with a material sensor and replaceable blade agitator, ensures uniform application with less than 4-inch error at up to 243 pounds per minute.

    • Standard 45L tank (optional 60L) with a spray width reaching 36 feet.

    • Can cover 60 acres/hr at 2 GPA. With advance flight routing, rapid setup time, and stabile long distance link with the relay station (45 ft/sec X 36 ft swath on 1/2 mile field, with one minute ground time, and one mine ferry time)

    • Supports sling loading up to 132 pounds with fast installation and one-click point identification for take-off and landing, reducing risks and doubling efficiency

    • The high-definition FPV camera enables aerial mapping with stitching speeds as fast as 5 minutes for 50 acres, providing a rapid field overview and boosting efficiency

request more info

EAVISION J150

request more info

Higher Power. Superior Performance.

The revolution is here.

The agricultural spray drone built for serious operators who demand reliability, flexibility, and productivity at scale.

PRODUCT SPECIFICATIONS

  • Fewer refills, more acres covered per flight -- maximizing productivity

    • 20 gallon spray tank | 180 pound spreader capacity

    • Spray flow rate: 10.5 gal/min

    • 30 mph max spraying speed with full obstacle avoidance and terrain following enabled*

    • Adjustable droplet sizes from 10-300+ microns

    • Safer flight in complex environments, avoiding obstacles in every direction

    • 360 degree spherical obstacle avoidance

    • Operate multiple drones in the same field, without signal loss

    • Multi-drone, interference-free data link

    • Stay connected and in control even if radio link is lost

    • Every unit comes standard with 4G connectivity

    • Comfortable all day-use, faster response for precise control

    • Redesigned, ergonomic, high-speed remote

    • All-day operation, even in 95 degree heat, without performance drop-off

    • 45,000 mAh battery with airflow cooling

    • Maintains 30 mph speed (even while traveling uphill with fully loaded tank)

    • Upgraded 63" propellers provide powerful lift and balance

    • More efficient power transfer for consistent lift and spray pressure

    • Upgraded battery terminals

    • Less downtime, lower maintenance costs

    • Upgraded, more modular wiring and systems allow for quick, targeted repairs
